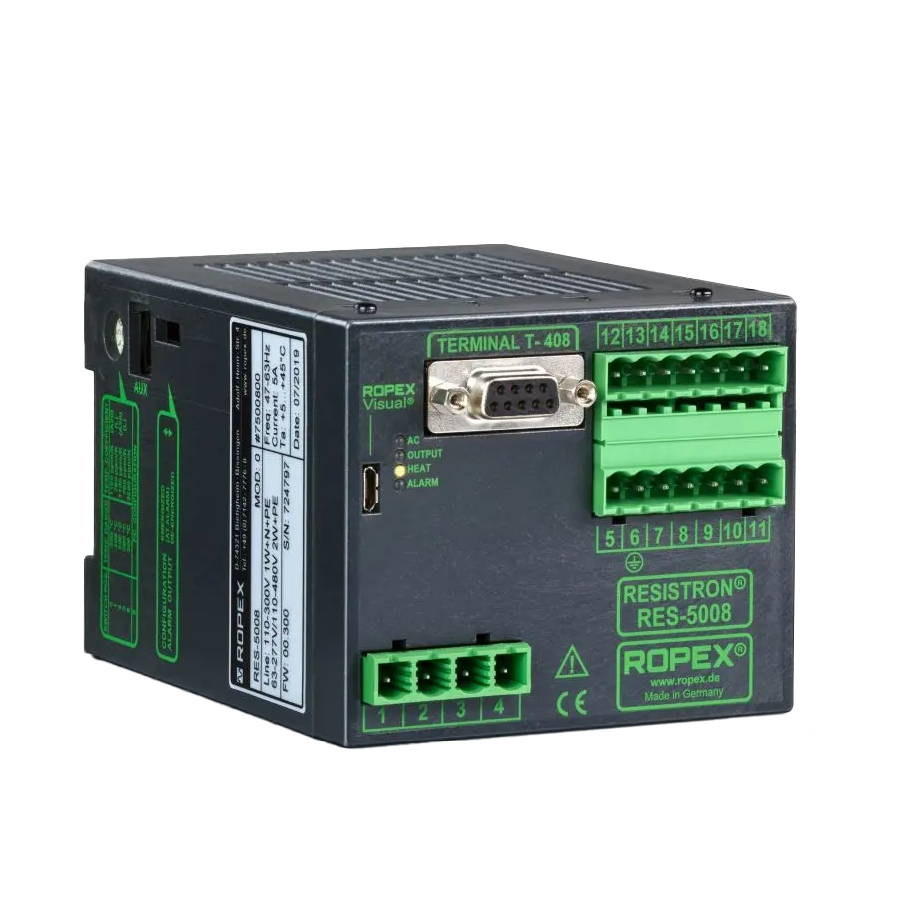

ROPEX RES-5008

The ROPEX Resistron RES-5008 controller utilizes microprocessor technology for sensorless, closed-loop control of impulse heating elements. The ROPEX RES-5008 is designed for simple plug-in system integration.

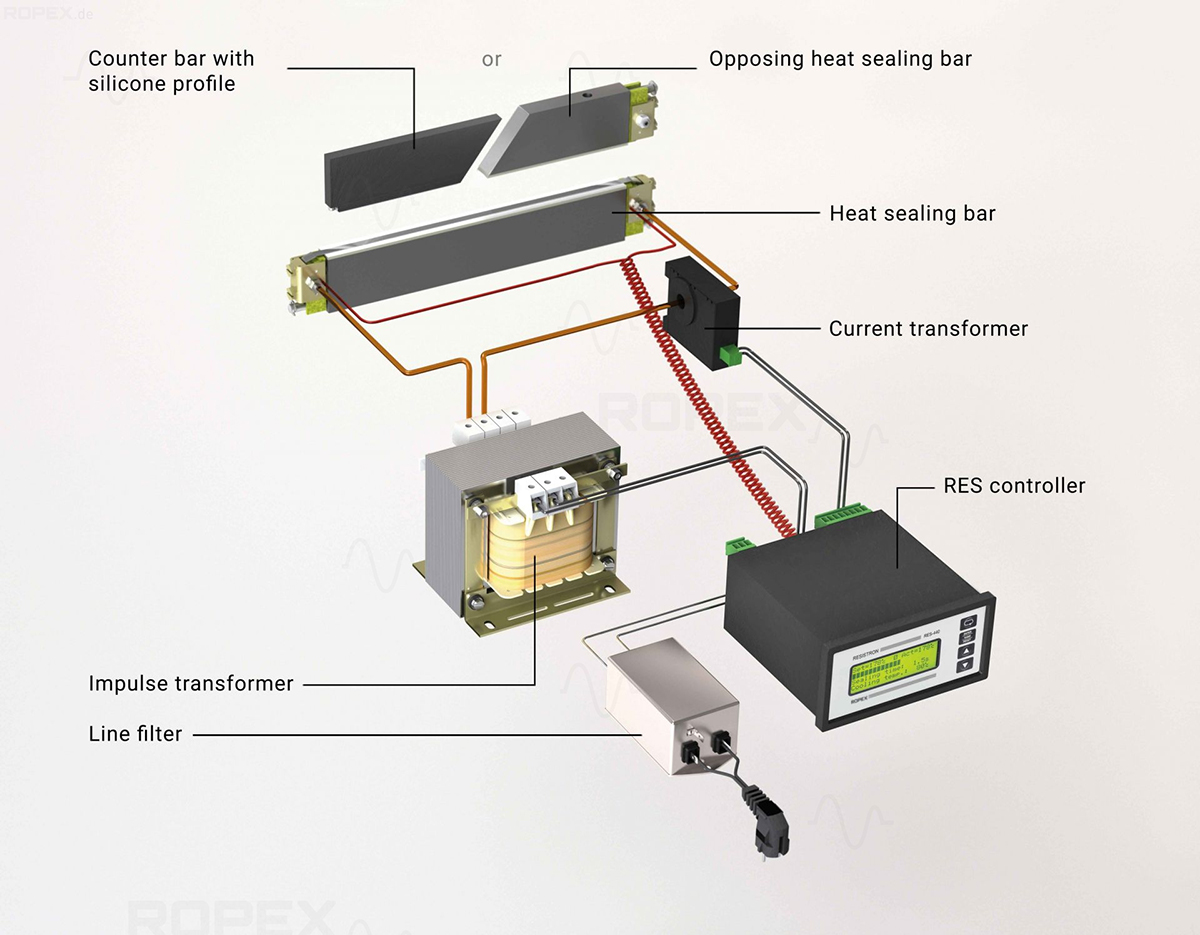

The use of ROPEX Resistron controls goes beyond impulse heat sealers, form fill machines, and converting equipment. ROPEX Resistron controllers provide a solution for an extensive range of heating applications:

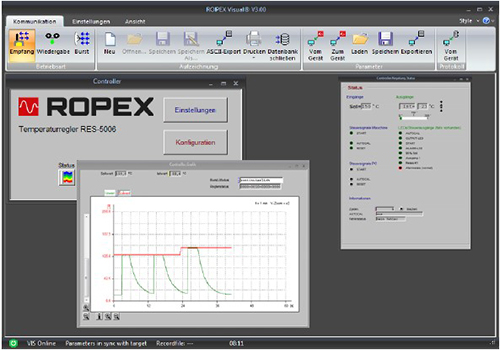

ROPEX Visual® enables you to connect directly to the RES-5008 Resistron controller via Micro-USB, giving you direct access to controller settings and error codes.

Ropex RES-5008 Features:

Separate terminal for operator display

Automatic zero calibration (AUTOCAL)

Automatic secondary voltage and current configuration

Automatic phase angle compensation (AUTOCOMP)

Automatic frequency adjustment

Booster terminal as standard

0...10 VDC analog output for ACTUAL temperature

Selectable heatseal band temperature range (up to 500°C)

Selectable heatseal band alloy (A20 (Alloy-20), A20L, Low-Ex, etc. ...)

Free ROPEX Visual® Windows PC software

Ropex RES-5008 Part Numbers:

Power Supply 110...480 VAC

Ropex Resistron RES-5008/110...480 VAC

Ropex Part No. 7500800

Terminal T-408-1

T-408-1 Part No. 885441

Sub-D connecting cable

2m Part No. 884202

5m Part No. 884205

10m Part No. 884210

Ropex Accessories:

Line filter: LF-06480, LF-10520, LF20520, LF30520, LF50520

Booster: B-075480, B100480

Current transformer: PEX-W5

Current transformer high busbar: HCB-1

Impulse Power Transformer: TR-X

Twisted Cable (RES voltage measurement cable): UML

High Current Cable (RES current load cables): C-TC

Our engineering team members have a diverse background and extensive industry experience. We offer full engineering support for new applications and upgrades. We will work with you to design a complete system tailored to your application.
